A replacement fan can fit the opening yet fail commissioning because the existing speed controller is incompatible, leaving the line without verified ventilation and the panel needing redesign. This centrifugal fan comparison examines BL-F200A-EC-07 and a selected GRE/GRF variant through command interfaces, protection, low-speed behavior and recovery after faults. The better purchase is the product configuration that meets the airflow duty with an approved, testable control arrangement.
The EC model is advertised with 0–10 V control. GRE/GRF offers speed adjustment, but the chosen motor and approved control method still need identification. Those descriptions do not establish interchangeable wiring, identical stop behavior, feedback availability or permission to connect either option to an external variable-frequency drive.

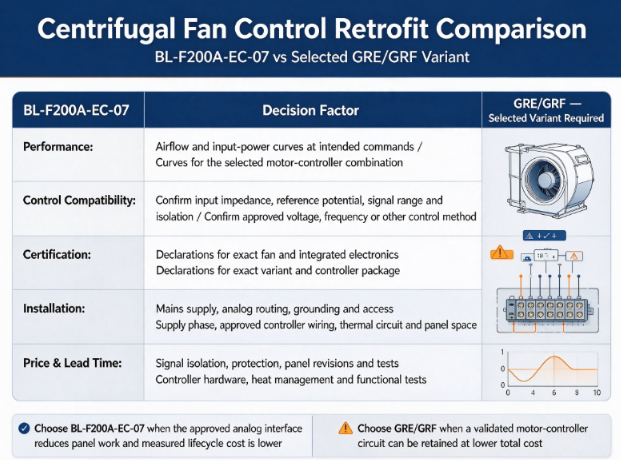

| Decision factor | BL-F200A-EC-07 | GRE/GRF — exact variant required |
|---|---|---|
| Performance | Require airflow and input-power curves at intended command settings. | Require equivalent curves for the selected motor-controller combination. |
| Control compatibility | Confirm input impedance, reference potential, signal range and isolation. | Confirm whether the selected controller uses an approved voltage, frequency or other method. |
| Certification | Request declarations covering the exact fan and integrated electronics. Verify with supplier’s current datasheet before specification. | Request declarations covering the exact variant and controller package. Verify with supplier’s current datasheet before specification. |
| Lifespan | Electronic and bearing endurance under cabinet conditions is unverified. Verify with supplier’s current datasheet before specification. | Motor and controller endurance under the retrofit duty is unverified. Verify with supplier’s current datasheet before specification. |
| Maintenance | Document replacement of the configured assembly and retention of approved settings. | Document motor, controller and protection replacement with exact part references. |
| Installation | Check mains supply, analog routing, grounding and physical access. | Check supply phase, approved controller wiring, thermal circuit and panel space. |
| Price | Include signal isolation, protection, panel revisions and functional tests. | Include controller hardware, panel heat management and functional tests. |
| Lead time | Obtain a commitment for the fan revision and complete interface package. Verify with supplier’s current datasheet before specification. | Obtain a commitment for the selected motor and approved controller. Verify with supplier’s current datasheet before specification. |
| Customization | Revised firmware, electronics or wiring needs documented compatibility review. | A motor or controller substitution needs a new approved configuration record. |
| Application fit | Candidate for a compatible analog-control retrofit within proven operating limits. | Candidate when an approved family configuration matches the retained control architecture. |
Data should be verified with current supplier quotations, certification documents, datasheets, and project-specific requirements before purchase. Prices and specifications vary by order volume and customization scope.
Separate three circuits in the retrofit specification: mains power, normal speed command and protective shutdown. A low-voltage command is not the motor supply. Do not apply variable-frequency power to the EC mains input or to an unspecified motor merely because the product can change speed; obtain written approval for the exact drive and wiring.
The control contract should define command scaling, minimum approved speed, run permission, alarm outputs if provided, feedback type if provided, and behavior after command loss, sensor loss, thermal trip and power restoration. Where the product does not provide the required diagnostics, define independent sensing and the integrator’s responsibility instead of inventing a built-in feature.
Choose BL-F200A-EC-07 if the approved input circuit can accept the existing signal without an unsupported interface. Verify the signal reference and isolation before removing an existing controller; an available voltage output alone does not prove compatibility.
If the approved EC arrangement avoids an additional speed-control device and still meets protection requirements, it can reduce panel modifications. Confirm installation clearances and electronic cooling rather than assuming that fewer components eliminate thermal constraints.
When witnessed tests demonstrate repeatable airflow at the required commands, the exact model offers a defined component reference for commissioning records. Retain separate settings for operating, minimum ventilation and permitted shutdown states.
Choose the selected GRE/GRF configuration when its approved controller matches the existing panel and the EC alternative requires redesign. Compare the whole circuit, including protective components, rather than the motor terminals alone.
The family listing identifies thermal-contact protection. If the selected variant’s contact ratings and approved wiring match the required interlock, that disclosure offers a concrete integration route; verify reset behavior and do not use the contact as a universal safety function.
If a specifically approved GRE/GRF variant fits the existing supply and mechanical envelope while the EC option does not, the selected variant avoids conversion work. A family-level phase option does not confirm stock, lead time or drive suitability.
Use a five-year control-retrofit cost model covering installed hardware, engineering, energy, fault diagnosis and replacement. Compare electrical input at equal delivered airflow; control electronics and any external controller belong inside the same meter boundary.
| Cost element | BL-F200A-EC-07 | GRE/GRF — selected configuration |
|---|---|---|
| Purchase and panel work | Price the fan, approved signal interface and panel modifications. | Price the selected fan, approved controller and panel modifications. |
| Engineering and validation | Include signal checks, protective-circuit review and command-loss tests. | Include drive approval, thermal-contact integration and reset testing. |
| Energy | Measure input at the actual production demand schedule. | Measure the complete motor-controller package on the same schedule. |
| Fault downtime | Include diagnosis of command, supply, electronics and external sensing faults. | Include diagnosis of motor, controller, thermal circuit and external sensing faults. |
| Replacement and requalification | Price a configured replacement and repeat functional acceptance. | Price approved replacement parts and repeat configuration-specific acceptance. |
Data should be verified with current supplier quotations, certification documents, datasheets, and project-specific requirements before purchase. Prices and specifications vary by order volume and customization scope.
TCO verdict: BL-F200A-EC-07 is the stronger retrofit candidate when its approved analog interface removes documented panel work and its measured lifecycle cost is lower; GRE/GRF wins when a validated motor-controller configuration can be retained at lower total cost. An EC designation alone cannot establish payback.
ISO 5801:2017, Fans — Performance testing using standardized airways, supports comparable laboratory airflow, pressure and input measurements; declare test conditions, uncertainty and applicable amendments in the contract.
ISO 14694:2003, Industrial fans — Specifications for balance quality and vibration levels, supports selection of applicable fan balance and vibration criteria; agree the category, mounting condition and measurement method before testing.
ISO 80079-36:2016, Explosive atmospheres — Part 36: Non-electrical equipment for explosive atmospheres — Basic method and requirements, addresses mechanical ignition risks that an electrical motor certificate alone cannot resolve.

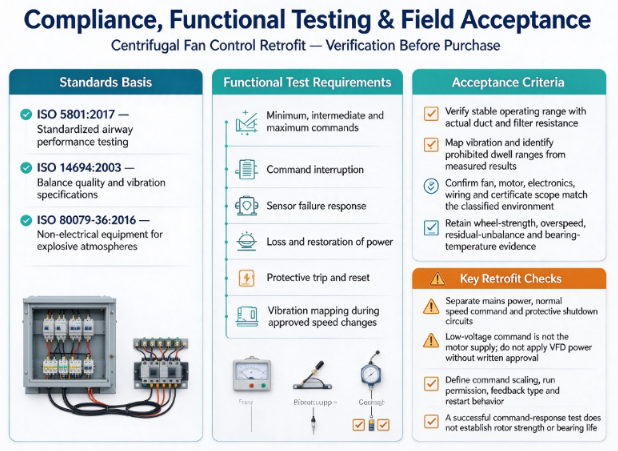

Perform functional tests with the actual panel and approved fan configuration: minimum, intermediate and maximum permitted commands; command interruption; sensor failure where feedback control is used; loss and restoration of power; and protective trip/reset. The process risk assessment determines whether loss of ventilation stops heaters, coating operations or other dependent equipment. Do not assume an automatic restart is acceptable.
Confirm the stable operating range using the actual duct and filter resistance. Map vibration during approved speed changes and identify prohibited dwell ranges only from measured results and supplier guidance. If a VFD is explicitly approved for the selected configuration, document resonance avoidance, low-speed cooling, overload protection, cable restrictions and electromagnetic compatibility; otherwise do not specify it.
A complete hazardous-area configuration record must link fan, motor, electronics or control cabinet, wiring method, installation location and certificate scope to the classified gas or dust environment. Confirm ambient and gas temperature limits, condensation conditions, sealing, residual particles and chemical compatibility separately. None of those capabilities follows from the presence of a control terminal.
The electrical review must also retain the mechanical validation chain: applicable wheel-strength analysis and qualified overspeed evidence, residual-unbalance records, assembled vibration, bearing-temperature rise and fatigue duty. Require sample quantity, duration, measurement locations and agreed acceptance limits. Passing a command-response test does not establish rotor strength or bearing life.
Build a destination-market compliance checklist with the equipment integrator before purchase, distinguishing product conformity, installation acceptance and process requirements. Verify any certificate through the issuing body’s official register or direct confirmation, then match its number, validity, holder, model schedule and restrictions to the delivered assembly. A management-system certificate or a report for a different model is not product approval; a test standard named here is an evaluation method, not a claim that either product is certified.
If the existing PLC signal matches the approved EC interface and all fault tests pass → Choose BL-F200A-EC-07 → Because the command path can be retained without an unsupported converter.
If the selected GRE/GRF motor-controller circuit is already qualified in the panel → Choose GRE/GRF → Because a proven circuit reduces retrofit engineering and validation scope.
If panel space prevents adding another controller and the approved EC arrangement fits → Choose BL-F200A-EC-07 → Because the documented installation resolves the panel constraint.
If the selected variant’s thermal-contact circuit matches the required approved trip chain → Choose GRE/GRF → Because protection can be integrated using an identified hardware function.
If the EC configuration demonstrates the required low-demand airflow without vibration or overheating → Choose BL-F200A-EC-07 → Because the tested operating range supports the intended demand schedule.
If a specific GRE/GRF configuration fits the retained supply and mounting while the alternative requires conversion → Choose GRE/GRF → Because avoiding conversion reduces the installed scope and associated validation.
Obtain a wiring diagram signed for the exact order code, approved controller list, protection settings, control-signal specification and functional test record. Request sample data showing command, measured speed where available, airflow, input power, alarm state and restart result on one timeline. Red flags include treating every speed-adjustable motor as VFD-compatible or promising fault feedback without identifying the relevant terminals. Before release, identify the sample or production assembly to be witnessed and require an inspection record linking dimensions, wiring, balance and functional results to its order code.
No; VFD compatibility must be approved for the exact motor and electronics configuration. The EC model’s command input is separate from its mains supply. For GRE/GRF, obtain the selected motor’s approved control method before specifying a drive.
No; a normal speed command does not establish electrical isolation or a protective shutdown function. Use the approved isolation and maintenance procedure. Define required stopping behavior and independent protective functions through the machine risk assessment.
The control system must enter the documented response defined by the process risk assessment. A fixed fallback speed is acceptable only if the required ventilation is demonstrated under the relevant resistance conditions. Verify the alarm, dependent-equipment response and reset procedure during commissioning.
Panel engineering, functional testing and configuration-specific replacement costs are frequently omitted. Include signal conditioning, wiring changes, protection and commissioning downtime in each quotation. Compare these with measured energy costs over the same service period.
